ALMS-12D-A40-S

Features: Shrouded power relay; 40A switching capability; 1 Form A & 1 Form C contact arrangement; Metal Bracket; Ambient temperature range: -40℃ to 125℃; Environmental friendly product (RoHS compliant); Direct insert mounting; Dimension: 35.2 x 35.2 x 46.0 mm Application: Rear Windows Defogger / Battery Disconnection Device / Air-Conditioning System / Power Distribution / Fog Lamp & Headlight Control / Fuel Pump Control / ABS / Traction Control system / Cooling Fan Control / Heating Control / Power Supply; Management System, etc.;

Share to:
Consultation Related articles

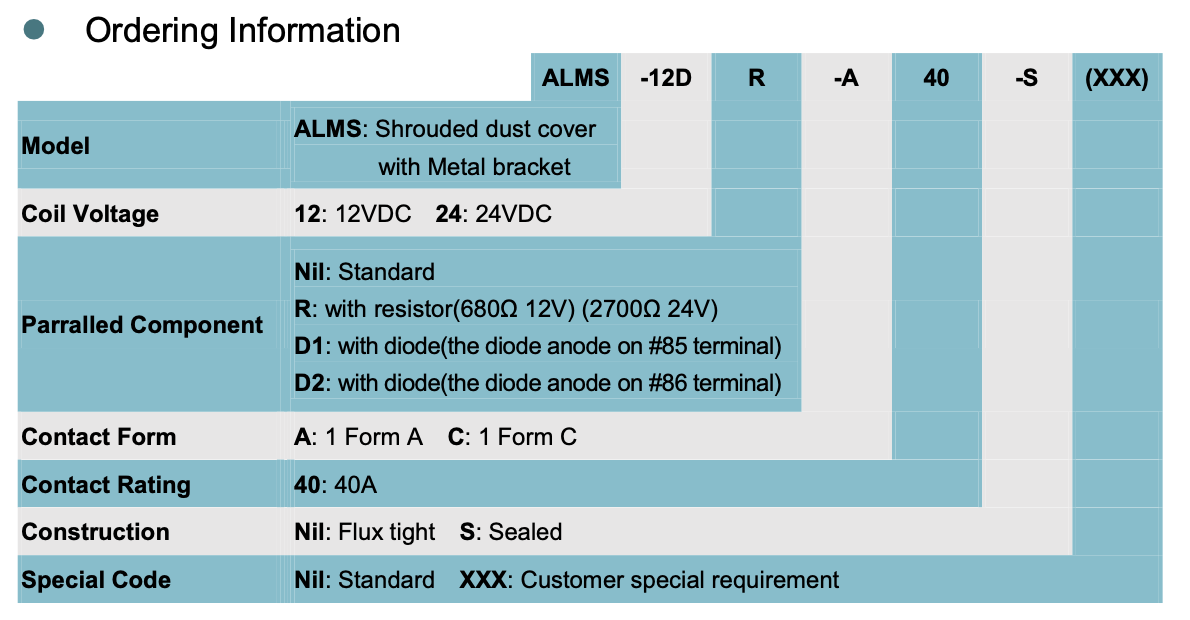

Model: ALMS

Product Detail
Coil Voltage Form: DC relay
Coil Voltage: 12VDC / 24VDC
Contact Material: Ag Alloy
Contact Arrangement: 1A, 1C
Contact Rating:
 1A: 40A 14VDC
 1C: NO: 40A 14VDC / NC: 30A 14VDC
Coil Power Consumption: 1.6W
Max. Switching Power: 560W
Max. Switching Current: 40A
Min. Contact Load: 1A 6VDC
Weight: Approx. 52.5g
Dimensions (mm)
35.2 × 35.2 × 46.0
Qualification
