Location:Home > Product > AUTOMOTIVE RELAY >
A8S-12D-2C

Features: 25A motor locked load, Extremely small relay, Change-over contact version, 2 Form A & 2 Form C contact arrangement, Plastic sealed and dust protected types available, Environmental friendly product (RoHS compliant); Application: Central door, Power Doors & Windows, Turning Lamp Control, Mirror Adjustment, Seat Adjustment, Speed-limit Indicator Control, Warm-up Control, Wiper Control, Sunroof Motor Control, etc.

Share to:
Consultation Related articles

Model: A8S

Product Detail
Coil Voltage Form: DC
Coil Voltage: 12VDC
Coil Power: 0.64W & 0.8W
Contact Arrangement: 2A, 2C
Contact Rating: 25A 16VDC
Double Contact
Max. Switching Power: 400W
Max. Switching Voltage: 16VDC
Max. Switching Current: 30A
Min. Contact Load: 1A 6VDC
Terminal Type: PCB
Weight: Approx. 8g
Dimensions (mm)
14 × 15.4 × 13.5

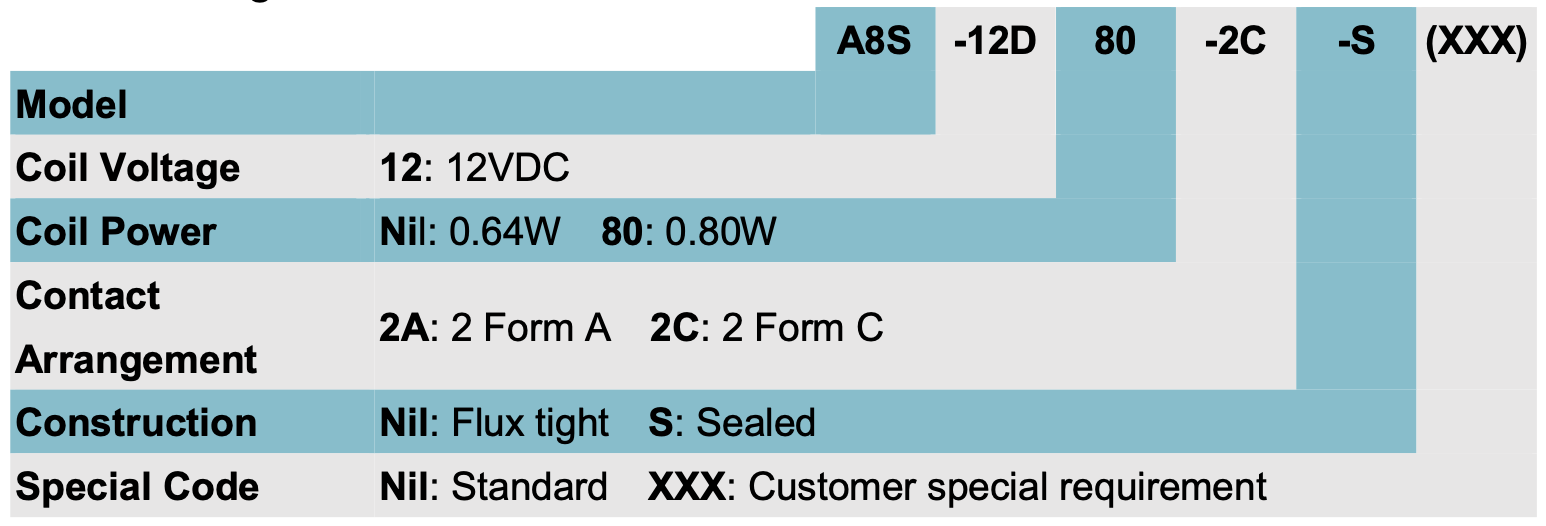

Ordering Information
