Location:Home > Product > AUTOMOTIVE RELAY >
AB-12D-2C

Features: Two AA relay in one housing; Ultra miniaturized design; Extremely light weight; Suitable for motor reversing application; Application: Motor Reversing; Power Anenna; Power Window; Interval Wiper Control; Sunroof Control; Steering Wheel Power Tilt; Central Door Lock; Seat Adjustment; Immobilizer; Body Control Module, etc.;

Share to:
Consultation Related articles

Model: AB

Product Detail
Coil Voltage Form: DC Relay
Coil Voltage: 6~12VDC
Contact Arrangement: 2 Form A / 2 Form C
Terminal Type: PCB
Contact Rating:
2A: 30A 14VDC
2C: NO: 30A 14VDC / NC: 25A 14VDC
Max. Switching Power: 420W
Max. Switching Voltage: 16VDC
Max. Switching Current: 30A
Min. Contact Load: 1A 6VDC
Coil Power Consumption: 0.55W
Weight: Approx. 8g
Dimensions (mm)
24.2 × 13.2 × 10.3

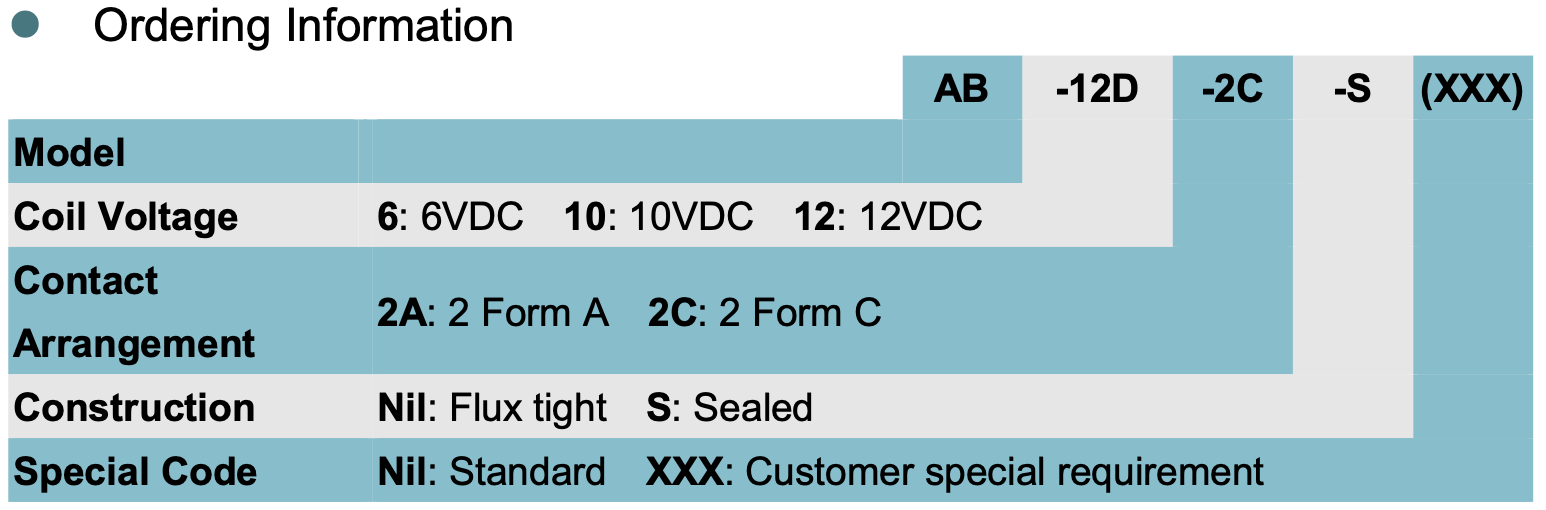

Ordering Information
