AC-12D-A-S

Subminiature Automotiive Relay Features: Ultra miniaturized and light weight design; Low coil power consumption; Environmental friendly product (RoHS compliant); Application: Central door / Power Doors & Windows / Turning Lamp Control / Mirror Adjustment / Seat Adjustment / Speed-limit Indicator Control / Warm-up Control / Wiper Control /, etc.

Share to:
Consultation Related articles

Model: AC

Product Detail
Coil Voltage Form: DC Relay
Coil Voltage: 6~24VDC
Contact Arrangement: 1A, 1C, 1U
Terminal Type: PCB
Contact Rating:
1A, 1C: NO: 20A 14VDC / NC: 15A 14VDC
1U: 2 × 6A 14VDC
Max. Switching Power:
1A, 1C: 280W
1U: 2 × 160W
Max. Switching Voltage: 16VDC
Max. Switching Current:
1A, 1C: 35A
1U: 2 × 10A
Min. Contact Load: 1A 6VDC
Coil Power Consumption: 0.6W / 0.8W
Weight: Approx. 6g
Dimensions (mm)
15.6 × 12.2 × 13.7

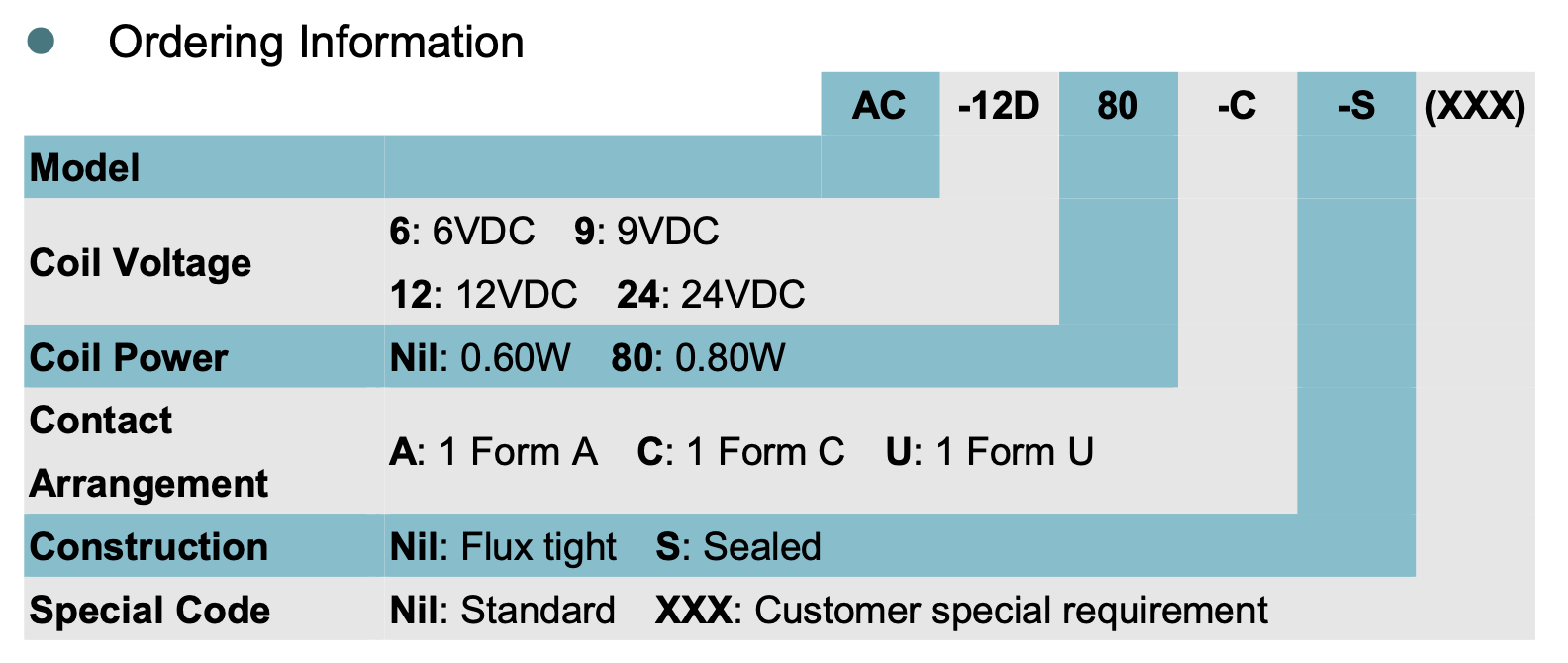

Ordering Information
