Location:Home > Product > AUTOMOTIVE RELAY >

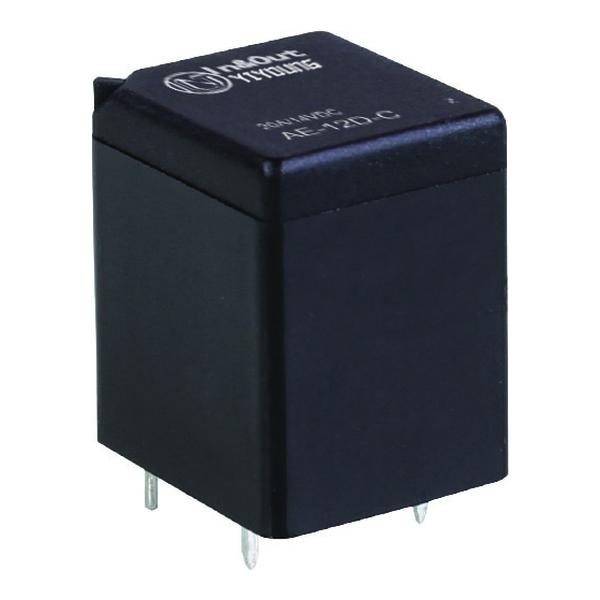

AE-12D-C

Features: Switching capability up to 20A; PCB terminals; Different contact arrangement available; Unenclosed and Plastic sealed types available; Environmental friendly product (RoHS compliant); Application: Signal Light & Lamp Control / Audio System / A/C Control / Fuel Pump Control / Temperature Control / Seat Adjustment / Window Defoggers / Starter; Solenoid Switches / Anti-theft Alarm System / Central Door Lock / Power; Doors & Windows, etc.;

Share to:
Consultation Related articles

Model: AE

Product Detail
6~24VDC Automotive relay
Contact Arrangement: 1A, 1B, 1C, 1U, 1V, 1W available
Single Contact / Double Contacts
Contact Rating:
1A: 20A
1B: 10A
1C: NO: 20A / NC: 10A
1U: 2x20A
1V: 2x10A
1W: NO: 2x15A / NC: 2x5A
Max. Switching Voltage: 14VDC
Max. Switching Current: 20A
Min. Contact Load: 1A 6VDC
Coil Power Consumption:
6VDC: 1.3W
12VDC: 1.1W
24VDC: 1.1W
Weight: Approx. 12g, Open Type: 8g
Dimensions (mm)
17.7 × 15.2 × 19.7 (with cover)
16.0 × 13.2 × 18.0 (without cover)

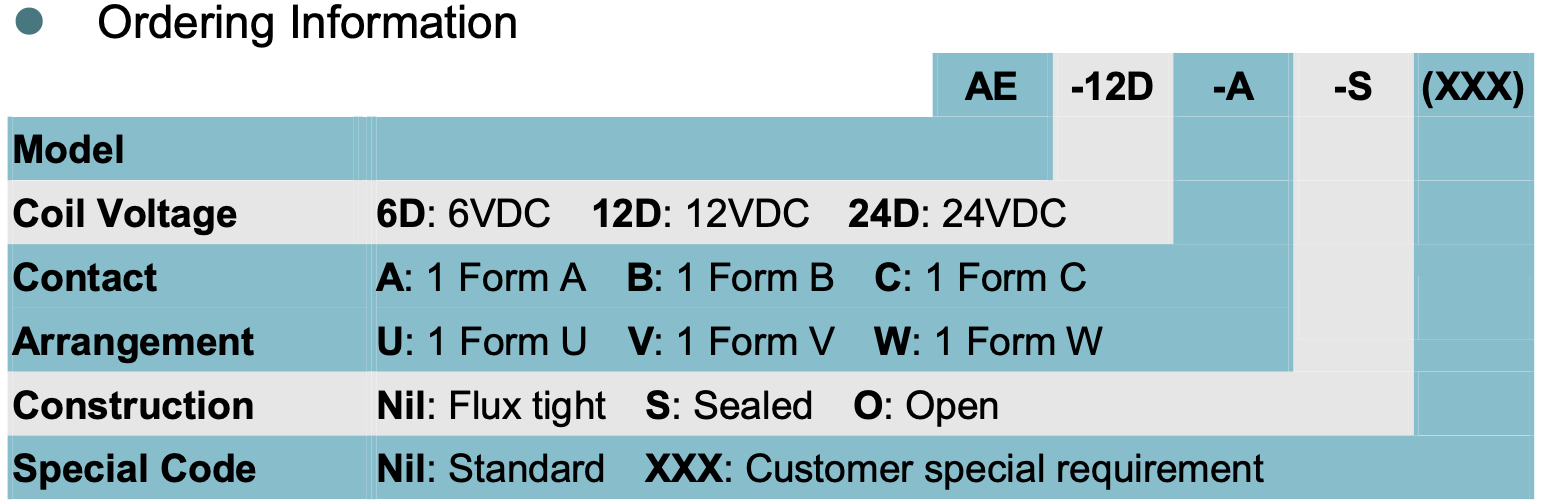

Ordering Information
