TA-12D-C

Subminiature Signal Relay; Features: 1A switching capability; Low coil power consumption; Small size, light weight; High sensitive: 150mW; 1 Form C configuration; Environmental friendly product (RoHS compliant); Dimensions: 12.3 * 7.3 * 10.2 mm; Application: Automation facilities / Telecommunication equipment (fax machine, telephone, smart phone) / Wireless radio remote control / Sound control toys application / Program control switch / Instrument and meter / Temperature controller / Security control, LPG ( liquefied petroleum gas )Controller etc.

Share to:
Consultation Related articles

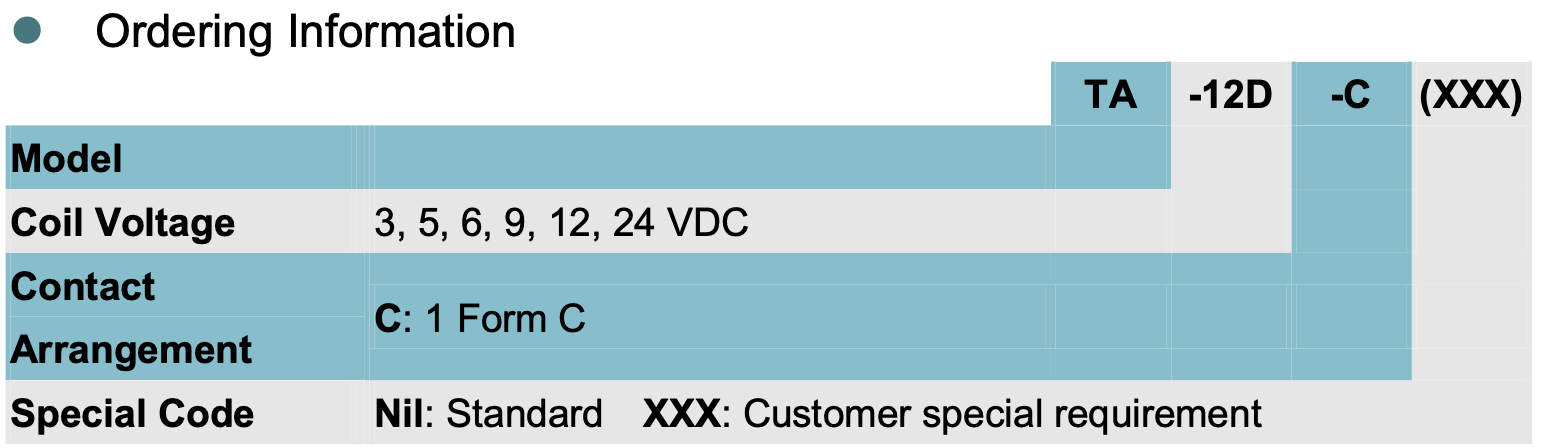

Model: TA


Product Detail
Coil Voltage Form: DC relay
Coil Voltage: 3VDC~24VDC signal relay
Contact Material: Ag Alloy
Contact Type: Single Contact
Contact Arrangement: 1 Form C
Contact Rating:
 1A / 125VAC
 1A / 30VDC
Coil Power Consumption:
 6~12VDC: 0.15W
 24VDC: 0.175W
Max. Switching Power: 125VA / 30W
Max. Switching Voltage: 125VAC / 30VDC
Max. Switching Current: 1A
Weight: Approx. 2.2g
Dimensions (mm)
28.0 × 5.0 × 15.0
