SB-12D-AF

Miniature Power Relay; Features: Slim size (width 5mm); 6A Switching capability; High breakdowm voltage 4kV (between coil and contacts); Surge voltage up to 6kV (between coil and contacts); High sensitive: Approx.170mW; Sockets available; 1 Form A and 1 Form C configurations; UL insulation system: Class F available; Environmental friendly product (RoHS compliant); Application: Smart Home Application; Home Appliance; Temperature Control; Security System; Anti-Theft System; Automation Control; Industrial Control; Meter, etc.

Share to:
Consultation Related articles

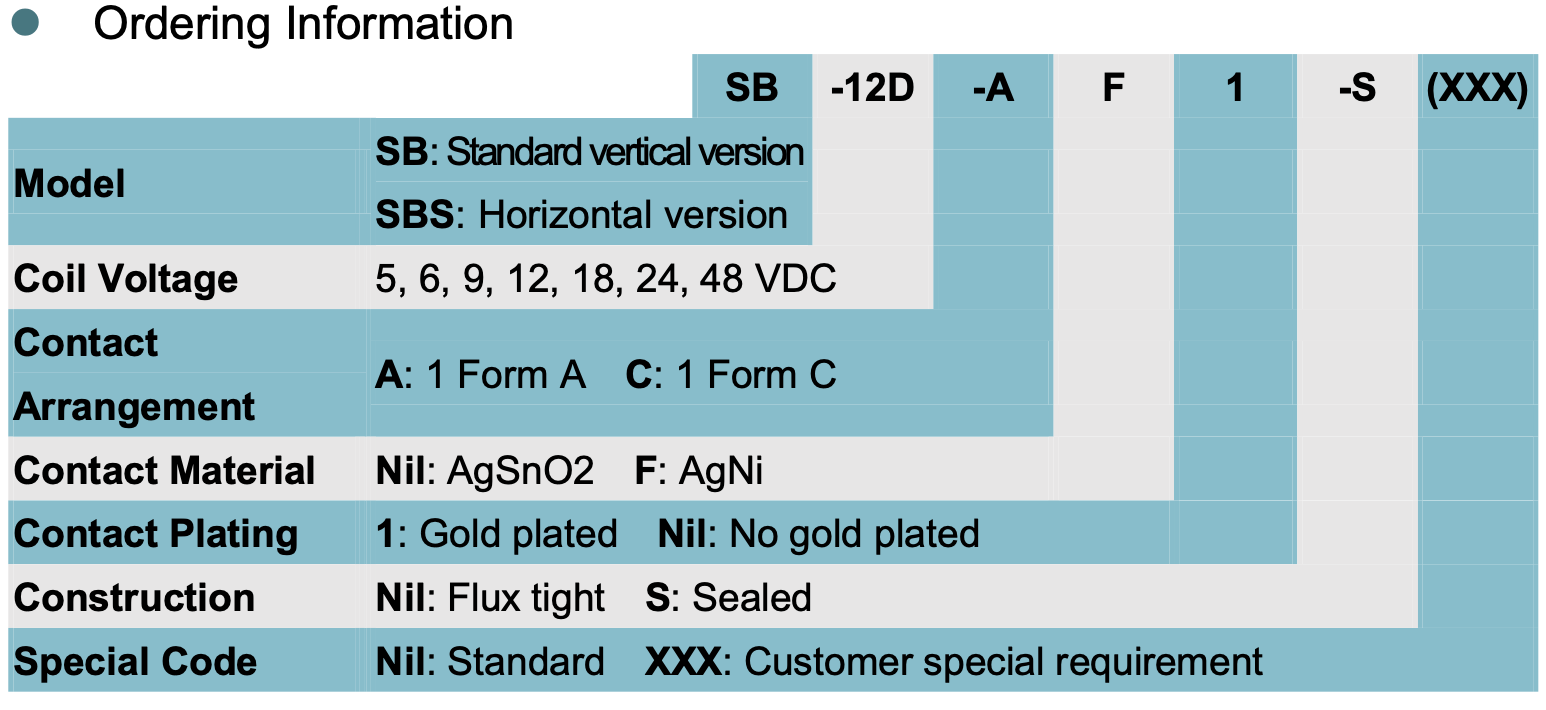

Model: SB

Product Detail
Coil Voltage Form: DC relay
Coil Voltage: 5~48VDC
Contact Material: Ag Alloy
Contact Arrangement: 1A, 1C
Contact Rating:
 6A 250VAC
 6A 30VDC
Coil Power Consumption:
 5~24VDC: 0.17W
 48VDC: 0.21W
Max. Switching Power: 1500VA / 180W
Max. Switching Voltage: 250VAC / 30VDC
Max. Switching Current: 6A
Weight: Approx. 5g
Dimensions (mm)
28.0 × 5.0 × 15.0
