Location:Home > Product > GENERAL POWER RELAY >
SA-12D-A1F

Power Relay; Features: Miniature power relay; Industrial control relay; 5A switching capability; 3kV dielectric strength (between coil and contacts); Slim size (width 5mm, height 12.5mm); High sensitive: Min. 120Mw; Sockets available; UL insulation system: Class F available; Environmental friendly product (RoHS compliant); Application: Smart Home Application; Home Appliance; Temperature Control; Security System; Anti-Theft System; Automation Control; Industrial Control; Meter;

Share to:
Consultation Related articles

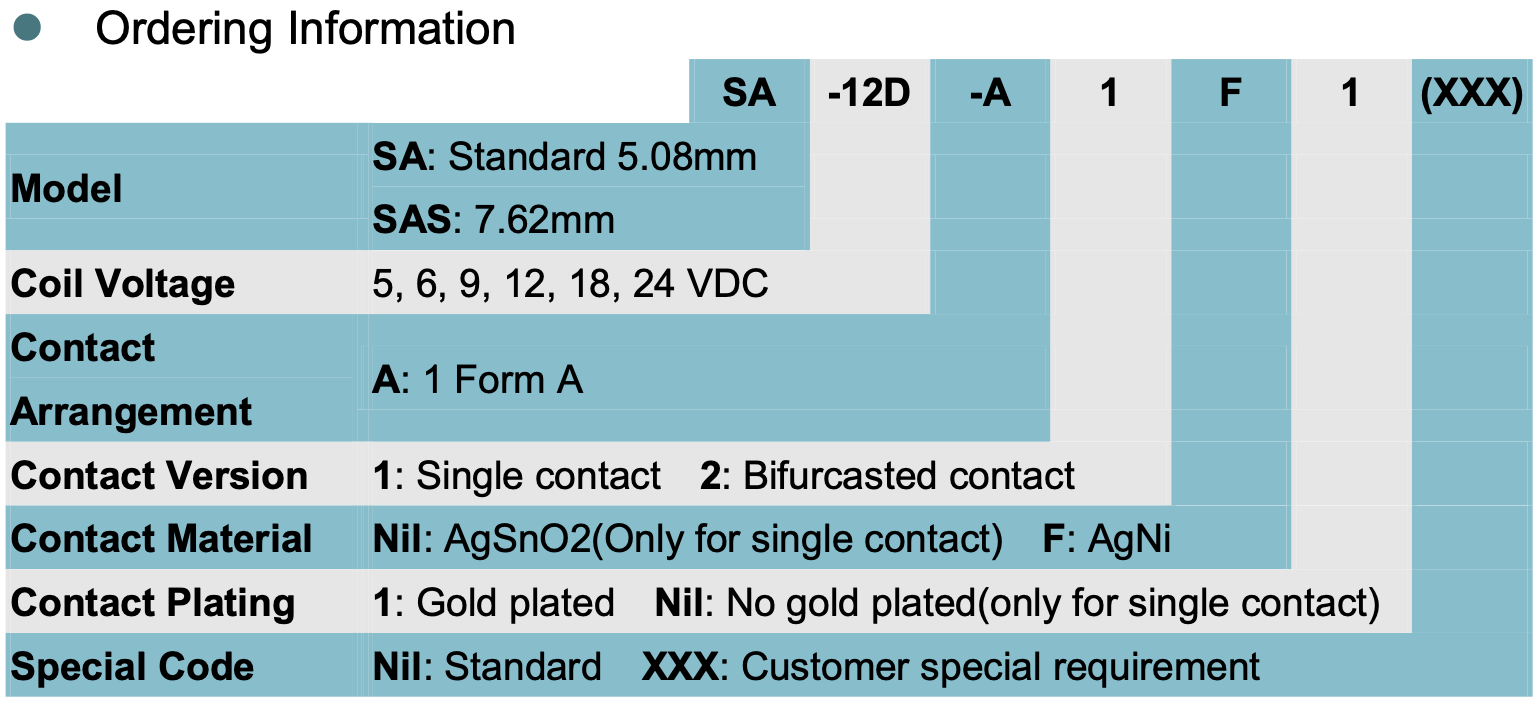

Model: SA

Product Detail
Coil Voltage Form: DC relay
Coil Voltage: 5~24VDC
Contact Material: Ag Alloy
Contact Arrangement: 1A
Contact Rating:
 5A 250VAC
 5A 30VDC
Coil Power Consumption:
 5~18VDC: 0.12W
 24VDC: 0.18W
Max. Switching Power: 1250VA / 150W
Max. Switching Voltage: 250VAC / 30VDC
Max. Switching Current: 5A
Weight: Approx. 3g
Dimensions (mm)
20.0 × 5.0 × 12.5
