Location:Home > Product > GENERAL POWER RELAY >
GP-12VDC-A54-16

Features: 16A switching capability; Low height: 20.6 mm; 5kV dielectric strength (between coil and contacts); Plastic sealed and flux proofed types available; Environmental friendly product (RoHS compliant); Application: Industrial Control; Home Appliance; Smart Home Solution; Temperature Control; Security System; Anti-Theft System;

Share to:
Consultation Related articles

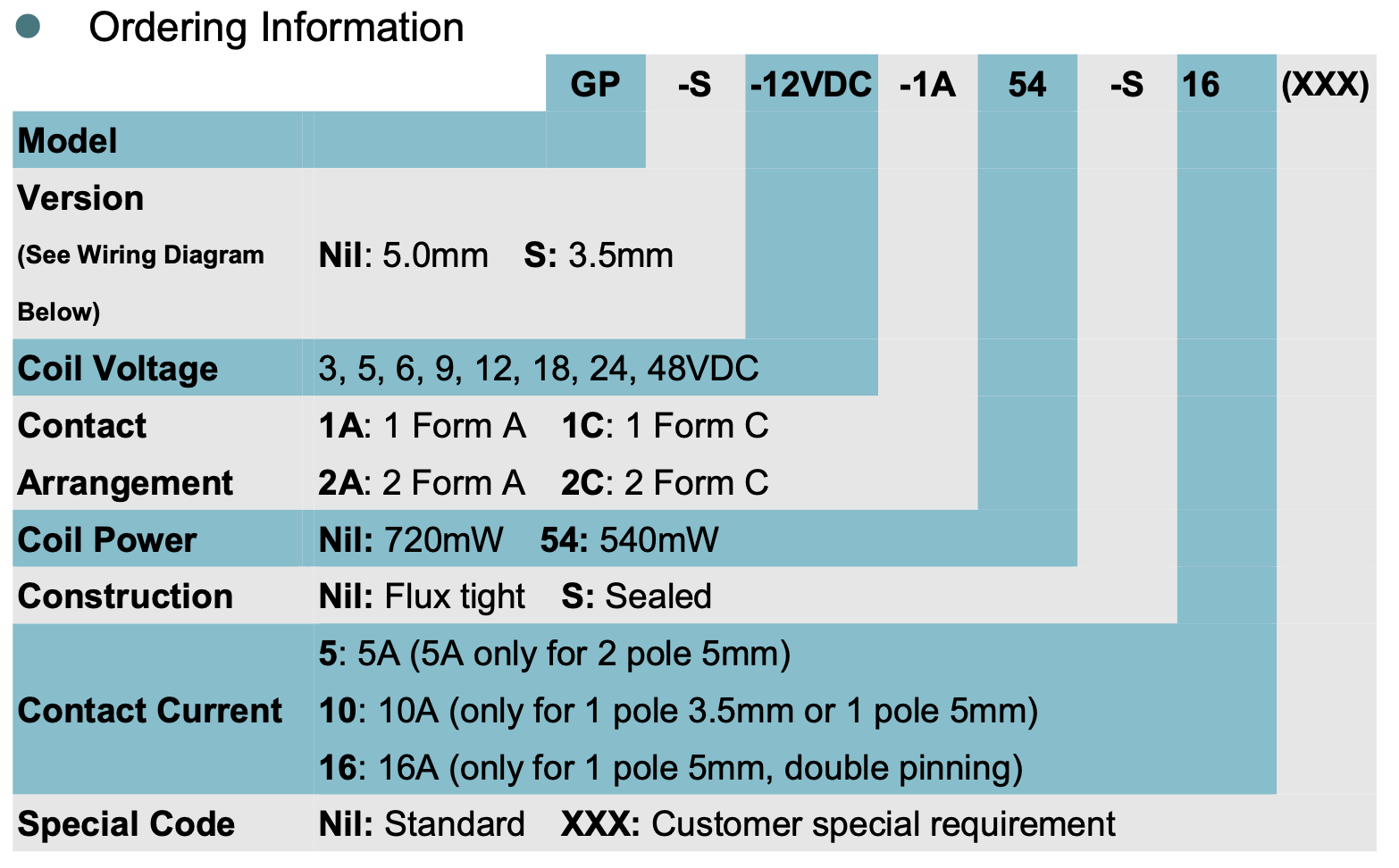

Model: GP

Product Detail
Coil Voltage Form: DC relay
Coil Voltage: 3~48VDC
Contact Material: Ag Alloy
Contact Arrangement:
 1A, 1C
 2A, 2C
Contact Rating:
 1 Pole: 16A 250VAC, 16A 30VDC,
              10A 250VAC, 10A 30VDC (resistive)
              1/4 HP 250VAC, TV-10 120VAC
 2 Pole: 5A 250VAC, 8A 250VAC
              5A 30VDC, 8A 30VDC (resistive)
Coil Power Consumption:
 Standard Type: 0.72W
 Sensitive Type: 0.54W
Max. Switching Power:
 1 Pole: 4000VA
 2 Pole: 2000VA
Max. Switching Voltage: 440VAC
Max. Switching Current:
 1 Pole: 16A
 2 Pole: 8A
Weight: Approx. 13g
Dimensions (mm)
29.0 × 12.6 × 20.6
