Location:Home > Product > GENERAL POWER RELAY >
GNT-12D-A26

Miniature High Power Relay; Features: Low height 15.7 mm; High Temperature Resistance: 105℃; Small size, light weight, low height; Dielectric strength 5kV; Creepage distance: 10mm; Sockets available; Plastic sealed and flux proofed types available; GNT: Standard type; GNT (H): High sentsive type; UL insulation system: Class F; Environmental friendly product (RoHS compliant); Application: Household Electrical Appliance; Automation System; Electrical Equipment; Instrument; Meter; Telecommunication Facilities; Remote Control System ; Security System;

Share to:
Consultation Related articles

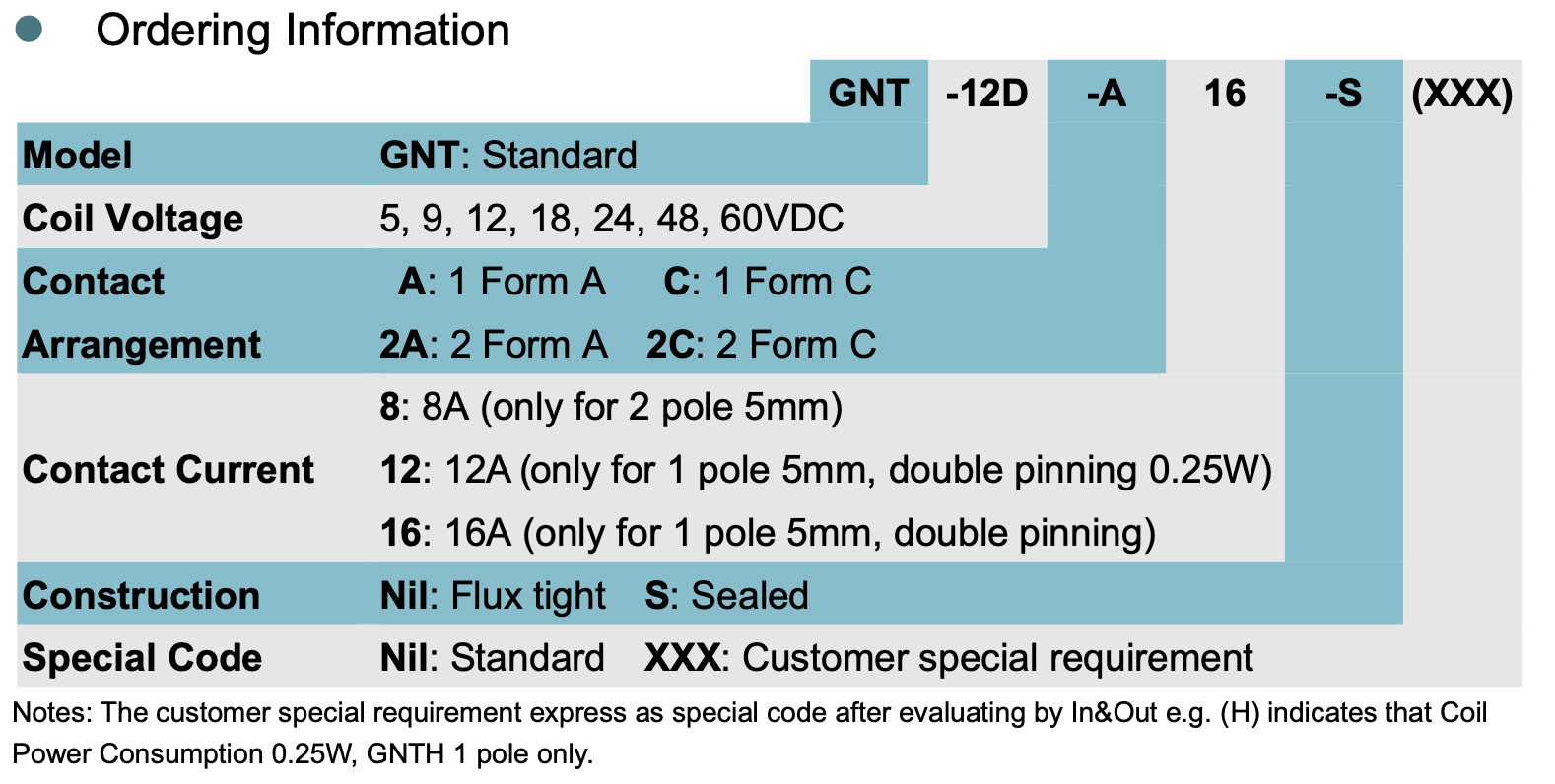

Model: GNT

Product Detail
Coil Voltage Form: DC relay
Coil Voltage: 5~60VDC
Contact Arrangement: 1A, 1C; 2A, 2C
Contact Material: Ag Alloy
Contact Current: 8A / 12A / 16A
Contact Rating:
 1A, 1C - GNT: 16A 250VAC
                GNT(H): 12A 250VAC
 2A, 2C - 8A 250VAC
Coil Power Consumption:
 Standard Type: 0.4W
 High Sensitive Type: 0.25W
Max. Switching Power:
 1A, 1C - GNT: 4000VA
                GNT(H): 3000VA
 2A, 2C: 2000VA
Max. Switching Voltage: 440VAC / 300VDC
Max. Switching Current:
 1A, 1C - GNT: 16A
                GNT(H): 12A
 2A, 2C: 8A
Weight: Approx. 13.5g
Dimensions (mm)
29.0 × 12.7 × 15.7
