Location：Home > Product > GENERAL POWER RELAY >

< >

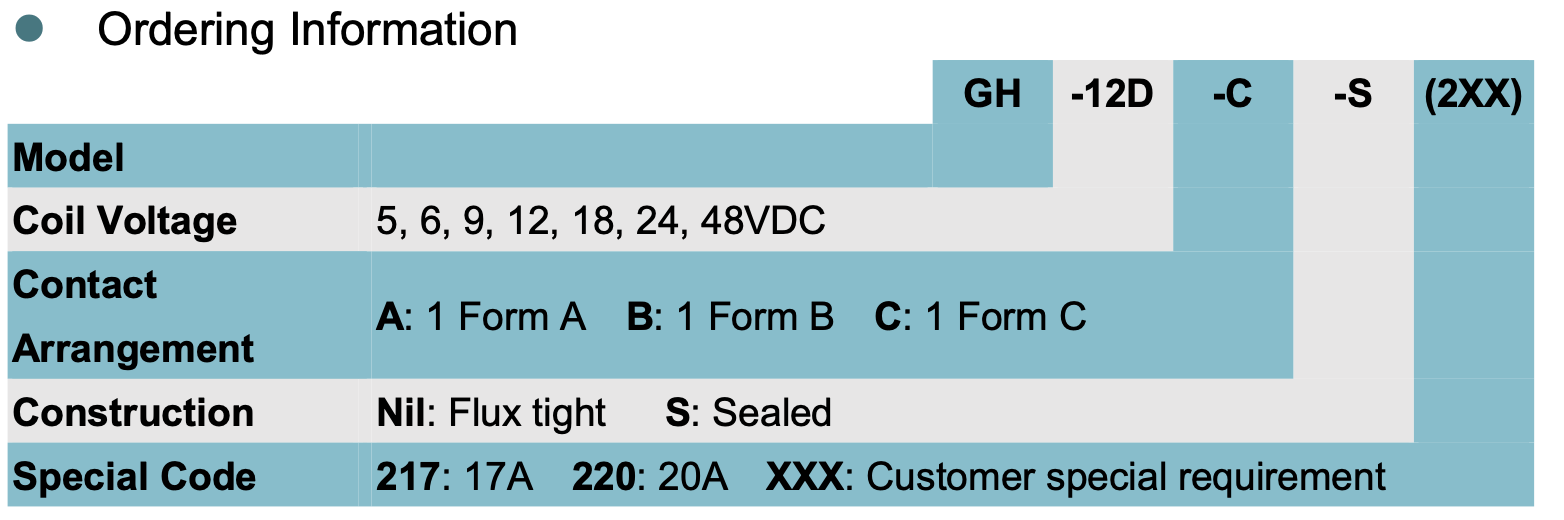

GH2-12D-A-S

Features: 20A switching capability; 1 Form A, 1 Form B and 1 Form C configurations; Standard PCB layout; Plastic sealed and flux proofed types available; UL insulation system: Class F available; Environmental friendly product (RoHS compliant); Dimensions: 20.3 x 16.5 x 20.5 mm; Application: Smart Home Solution / Street Light Control / Home Appliance / Temperature Control / Industrial Control / Security System / Anti-Theft System, etc.

Consultation Related articles

Model: GH2

Product Detail	Coil Voltage: 5~48VDC Power Relay Coil Voltage Form: DC Contact Arrangement: 1 Form A, 1 Form B, 1 Form C Contact Material: Ag Alloy Single Contact Contact Rating: Resistive Load: 20A 125VAC 17A 277VAC 15A 250VAC TV-8 Motor Load: 1HP 250VAC Max. Switching Power: 5540VA Max. Switching Voltage: 277VAC Max. Switching Current: 20A Coil Power Consumption: 0.36W Terminal Type: PCB Weight: Approx. 12g
Dimensions (mm)	20.3 × 16.5 × 20.5

Product Detail

Coil Voltage: 5~48VDC Power Relay

Coil Voltage Form: DC

Contact Arrangement: 1 Form A, 1 Form B, 1 Form C

Contact Material: Ag Alloy

Single Contact

Contact Rating:
Resistive Load:
  20A 125VAC
  17A 277VAC
  15A 250VAC
  TV-8
Motor Load:
  1HP 250VAC

Max. Switching Power: 5540VA

Max. Switching Voltage: 277VAC

Max. Switching Current: 20A

Coil Power Consumption: 0.36W

Terminal Type: PCB
